PET Preform Molds

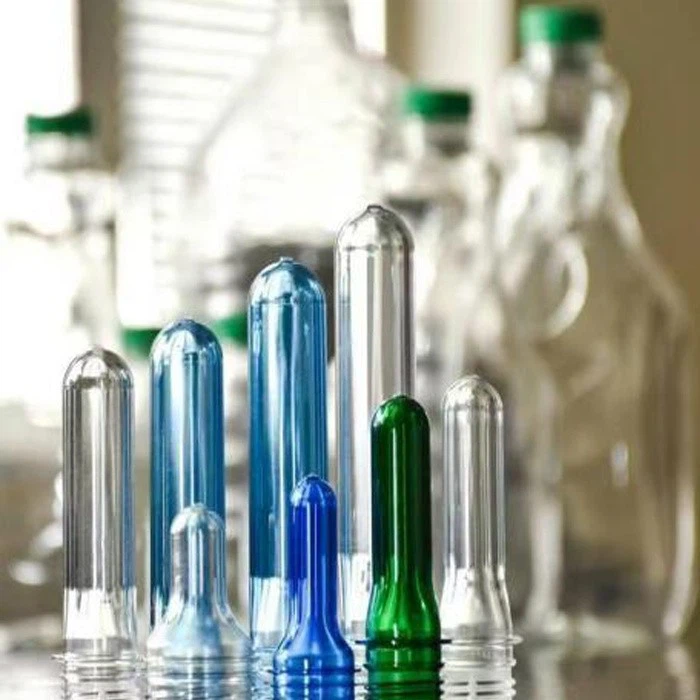

CHARMOULD designs and manufactures PET preform molds for water bottles, beverage bottles, edible oil bottles, and wide-mouth jars. We provide custom mold designs based on your preform drawing, neck dimensions, preform weight, and injection molding machine specifications.
Custom Mold Options
Cavity Count: 8–72 cavities, depending on your production requirements and machine specifications.
Neck Dimensions: Customized to match your preform drawing or sample.
Preform Weight: Designed according to your required weight and preform geometry.
Machine Compatibility: Mold dimensions and installation requirements are reviewed to suit your injection molding machine.
Request a Custom Quote
Please send us your preform drawing or sample details, required cavity count, target preform weight, and injection molding machine model. Our team will review your requirements and prepare a suitable mold proposal.
Request a Quote
https://www.charmould.com/contact-us
-
8 Cavity PET Preform Mold For Custom Bottle ProductionOur 8 Cavity PET Preform Mold is designed for small-scale production, product development and customized PET preforms. It provides excellent molding precision, stable performance and easy...view more
-
8-cavity-pet-preform-moldOur 8 Cavity PET Preform Mold is designed for small-scale production, product development and customized PET preforms. It provides excellent molding precision, stable performance and easy...view more
-
Water Bottle Preform MoldThe shape, size, and quality of the bottle face are all determined by the water bottle preform mold, a crucial element in the plastic bottle manufacturing process. Using high-quality mold steel...view more
-
Beverage Bottle Preform MoldTypically, a set of beverage bottle preform mold is composed of a cavity, a core, a gate, a cooling system, a demoulding mechanism and a mold base. High-quality steel should also be selected as...view more
-
PET Preform MoldPET preform mold usually has Multi-cavity mold design can produce multiple bottles at the same time, improving production efficiency. Made of high-temperature resistant alloy steel or...view more
-
Plastic Preform MoldBottle Form molds can be used to manufacture molds of various cavity numbers according to the needs of different customers. Common bottle form molds include 1 cavity, 2 cavity, 4 cavity, 6 cavity,...view more
-
5 Gallon Preform MoldA multi-cavity design is usually adopted, and the common ones are 2- cavity, 4-cavity, 8-cavity, etc., to improve production efficiency. Injection cavity and core injection generally S136...view more
-
72 Cavity Preform MoldThis is a 72 cavity preform mold, which is commonly used in the injection molding process of plastic bottle production. This kind of mold can form 72 preforms at one time, effectively improving...view more
-
48 Cavity Preform MoldThis is a 48 cavity preform mold. The bottle is designed by computer simulation Tensile test to improve the yield of blowing bottle. The thread mouth is manufactured according to International...view more
-

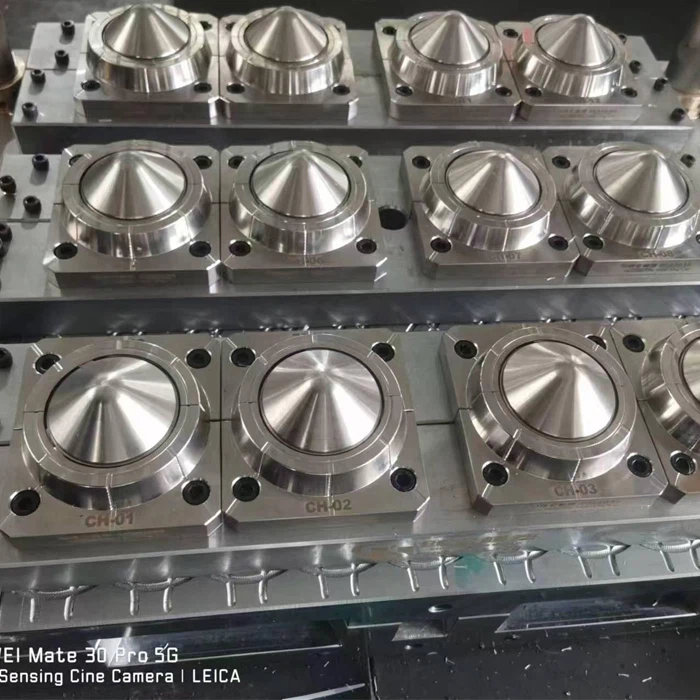

Wide Mouth Jar Preform MoldWide mouth jar preform mold is mainly used in food, beverage, cosmetics, pharmaceuticals and other industries, it is used to produce wide-mouth plastic bottles of various specifications. If the...view more
-
8 Cavity Preform MoldIn terms of production efficiency, 8 bottles can be molded in one injection molding, and the production efficiency is several times that of a single cavity mold, which can effectively reduce the...view more
-
16 Cavity Preform MoldIt has 16 cavity, and can produce 16 bottle preforms at the same time to improve production efficiency. Model frame use the P20 steel. The cavity and core mostly used S136 steel. After preheating,...view more
PET Preform Mold Specifications
| Item | Specification |
|---|---|
| Product Name | PET Preform Molds |
| Cavity Options | 8 / 12 / 16 / 24 / 32 / 48 / 64 / 72 Cavities |
| Neck Finish Options | PCO 1810 / PCO 1881 / 29/25 / 30/25; other neck sizes according to the selected mold design |
| Preform Weight | 5–45 g for 64/72-cavity models; 10–55 g for 48-cavity models; 10–210 g for selected lower-cavity models |
| Preform Material | PET |
| Core & Cavity Steel Options | S136 / FS636 / FT632 |
| Mold Base Options | P20 / 4Cr13 |
| Core & Cavity Hardness | HRC 49–51 |
| Gate Options | Short Tail / Long Tail / Pin Valve Gate |
| Ejection System | Stripper Plate |
| Cycle Time | Depends on preform weight and mold configuration |
Cavity count, neck finish, and preform weight must be matched to the selected mold design and injection molding machine. The listed options are not available in every combination.
As one of the most professional preform mold manufacturers and suppliers in China, we're featured by quality products and low price. Please rest assured to buy preform mold in stock here from our factory. Contact us for free sample.
